We,GOGOGO Mechanical&Electrical Co.,Ltd specialize in high quality energy-efficient electric motors. The combination of the best available materials, high quality sheet metal and the right amount of copper in the rotor/stator makes GOGOGO's electric motors highly energy-efficient.
We design our electric motors to fit and match our customer's requirements at our production site. The electric motors can be supplemented with a range of options and accessories or modified with a special design to endure any environment.
Electric motors account for a large part of the electricity used. If we look at the world, electric motors account for about 65 percent of the electricity used in industry. To reduce this use of electricity, there are legal requirements regarding the efficiency of electric motors manufactured in the EU, or exported into the EU.
Three-phase, single-speed asynchronous motors are covered by the requirements today. Asynchronous motors are the most common type of motor and account for 90 percent of the electricity consumption of all electric motors in the power range 0.75 - 375 kW.
According to that standard, the energy efficiency classes have the designations IE1, IE2, IE3 and IE4, where IE4 has the highest efficiency.
Revision of the standard
A revision of the standard was decided by the Ecodesign Committee in 2019. The revision was published on October 1, 2019. The following will apply:
For electric motors
From July 1, 2021
2-, 4-, 6- and 8-pole motors from 0.75 - 1000 kW (previously up to 375kW) are included in efficiency class IE3.
Motors within the range 0.12 - 0.75 kW must meet efficiency class IE2.
The previous possibility to replace IE3 motors with an IE2 motor with frequency drive disappears.
From July 1, 2023
For 2-, 4-, 6- and 8-pole motors from 0.12 - 1000 kW, the efficiency class IE2 now also applies to Ex eb certified motors with high safety.
Single phase motors with greater power than 0.12 kW are covered by the corresponding IE2 class.
The higher efficiency class IE4 applies to 2, 4 and 6-pole motors between 75 - 200 kW.
For frequency inverters
From July 1, 2021
For use with electric motors with power from 0.12 - 1000 kW, the frequency inverter must pass efficiency class IE2 specially designed for inverters.
Current requirements according to the Directive
Since 16 June, 2011 it is prohibited to place electric motors below energy efficiency class IE2 on the market, or to put them into service in the EU.
Since January 1, 2015, electric motors within the range 7.5 - 375 kW (2-, 4-, and 6-pole) must meet the requirements for IE3, or IE2 if the latter is combined with frequency inverters for speed control. The legal requirement thus provides two options.
From January 1, 2017, the requirements were tightened so that all motors 0.75 - 375 kW (2-, 4-, and 6-pole) must meet the requirements for IE3, or IE2 if they are combined with frequency inverters.
Exemptions from the current directive
- Operation other than S1 (continuous drive) or S3 (intermittent drive) with a nominal cyclicity factor of 80 percent or lower.
- Made for assembly with frequency inverters (integral motors).
- Electric motors made for use in liquid.
- Electric motors that are fully integrated into a product (e.g. a gear, pump, fan or compressor) where the energy performance is not tested independently of the product.
- Brake motors
Electric motors intended for operation exclusively:
- At altitudes exceeding 4 000 meters above sea level.
- If ambient air temperatures exceed 60°C.
- Where maximum operating temperature exceeds 400°C.
- Where ambient air temperatures are less than -30°C for all motors, or less than 0°C for motors with water cooling.
- In explosive atmospheres (as defined in Directive 94/9 / EC 9)
The requirements do not apply to ships or other means of transport that carry goods or persons, since there must be specially designed engines for this purpose. (If the same mobile conveyor belt is used on ships as well as on land, the rules apply).
Also, the requirements do not apply to repair of motors previously placed on the market, or put into service - unless the repair is so extensive that the product will in practice be brand new.
If the motor is to be further exported for use outside Europe, the requirements do not apply.
Some other requirements apply to water-cooled motors
We have our own design and development team, we can provide customers with standard AC electric motors, We can also customize the single phase/three phase motors according to the special needs of customers. Currently our main motor products cover three - phase high - efficiency motors,general three - phase motors, single phase motors, etc.

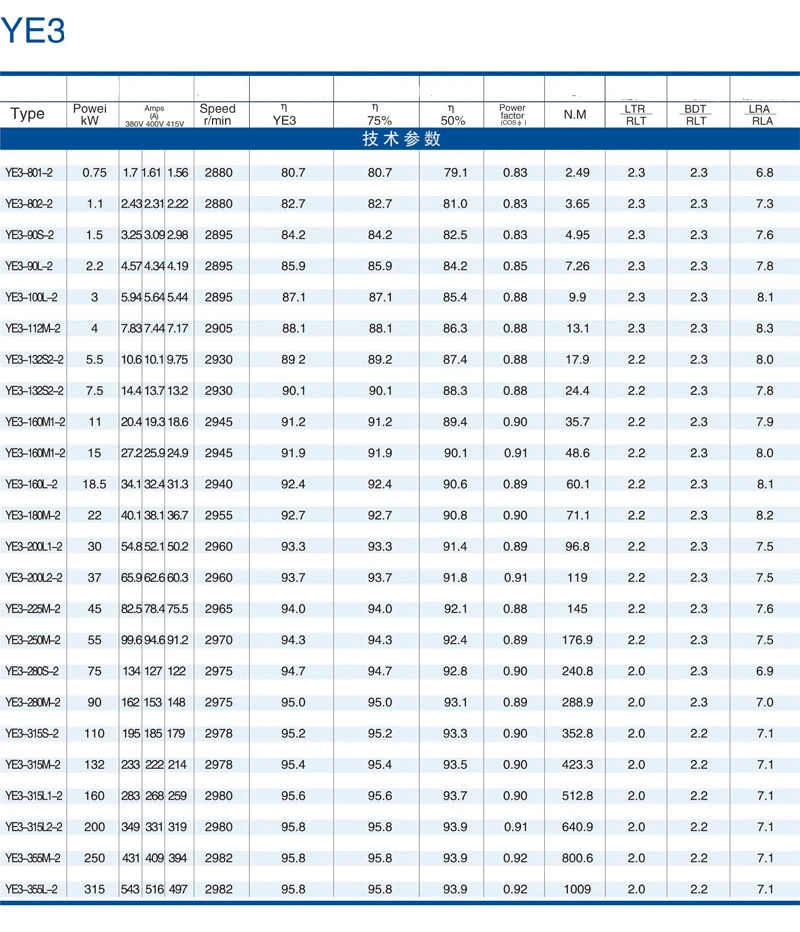

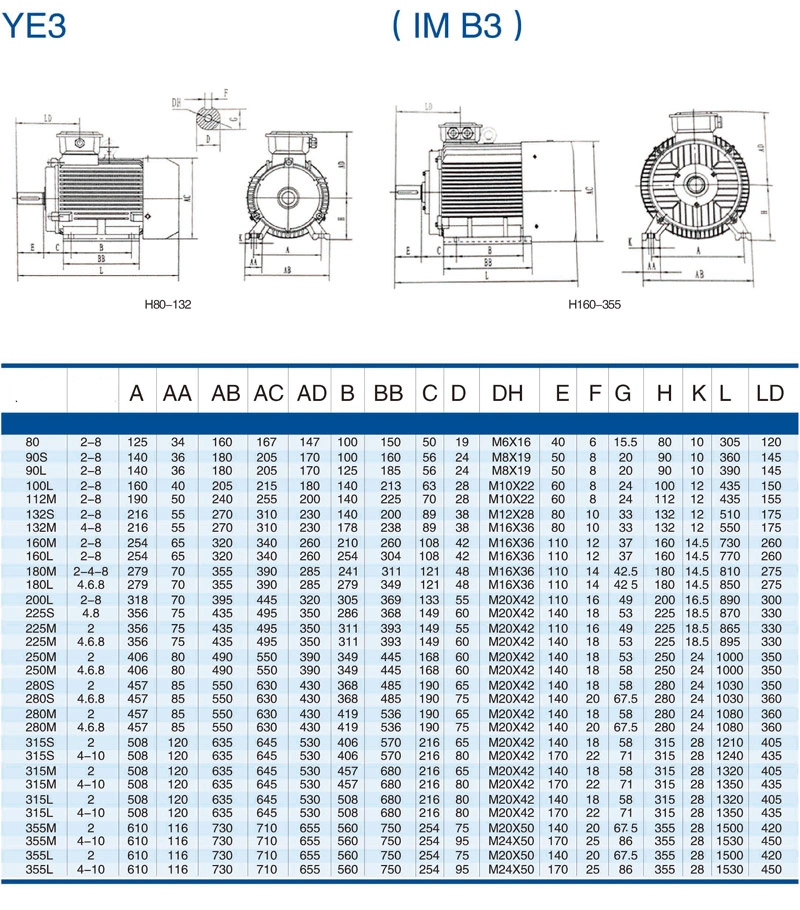

The main motor ranges: IE3 / YE3, IE2 / YE2, IE1 / Y2, Y, YS, MS, YC, YL, YY, MC, MY, ML motors.
American standard NEMA motors
Russian standard GOST ANP motors
Taiwan type AEEF motors,YC motors
Why choose us?
Guarantee of our motors:18-24months
General elivery time:15-30days
Price of motors: Most reasonable during your all suppliers
Packing:Strong export cartons/wooden case/plywood cases/pallets
Payment way with your order: T/T,LC,DP,etc
Sample order: Acceptable
Shipment way: Sea ship,Air flight,Express way,Land transfer way.
If you are looking for new better supplier or purchase electric motors, please feel free contact us now.You will get all what you want.
