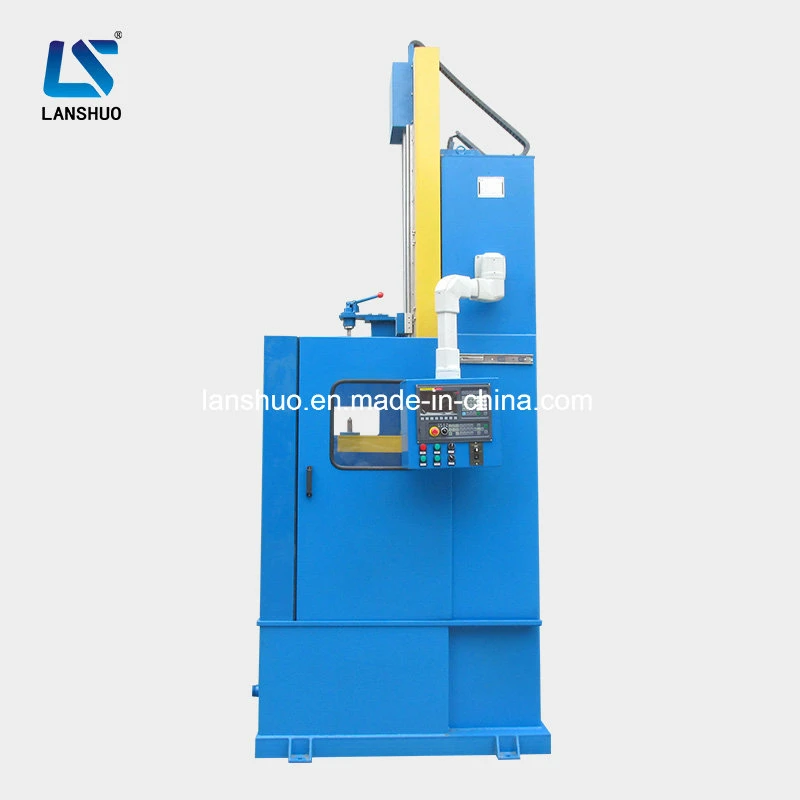

PLC control high frequency induction heating machine, metal hardening tool
CNC induction hardening machine tool adopts CNC control system;
CNC induction hardening machine tool through the way of moving of the sensors or workpiece to hardening the products;
CNC induction hardening machine tool applicated in continuous motion hardening of small shafts, large shafts and disk parts, overall rotation hardening.
|Technical Parameters of CNC Induction Hardening Machine Tools|
|Max workpiece length (mm)||650||1050||1550||2050|
|Max hardening length (mm)||600||1000||1500||2000|
|Max workpiece diameter (mm)||600||600||800||800|
|Max workpiece weight (kg)||150||150||150||150|
|Range of spindle speeds (rps)||0-200||0-200||0-200||0-200|
|Range of workpiece speed (mm/s)||1-60||1-60||1-60||1-60|
|Lifting speed (m/min)||3.6||3.6||3.6||3.6|
|Moving positioning accuracy(mm)||±0.1||±0.1||±0.1||±0.1|
Main Featurers of CNC Induction Hardening Machine:
1. Lathe: adopt welded structure with good rust-proof functions.
2. Top adjustment parts: adopt electric adjustment to realize clamping of different length work pieces.
3. Work table system: adopt ball screw and servo motor to drive, light driving, high guide precision and accurate positioning.
4. Main shaft rotation system: adopt variable frequency regulating to realize parts rotation speed continuous adjusted.
5. Electric control part: the machine tool has power-loosing protection function. Safe and reliable.
6. Frame: made by thick steel plates, with window and sliding doors, prevent water splash, easy to load parts and monitor hardening process.
Main advantages of CNC Induction Hardening Machine:
1. Frequency adjustable according to different work piece requirements, generally is 10-30KHZ, hardening depth is 2-4mm.
2. The hardness is HRC45-53.
3. Hardening speed is 1 to 3 times faster than normal medium frequency induction hardening machine.
4. Design sensors according to guide surface structure, unilateral or bilateral hardening is OK.
5. Adopt guide rail positioning, promise uniform temperature and hardness.
6. Adopt IGBT, efficiency is 40% higher than SCR, saving much energy.
7. Must work together with the LSW series induction heating machine.
Application of CNC Induction Hardening Machine:
1. Zhengzhou Lanshuo Electronics Co.,Ltd. is located in Zhengzhou National High-tech Industrial Development Zone. We are specialized in the R&D, design, design, production, complete sets of high frequency medium frequency induction heating machine, with importing & exporting managerial authority, and a import & export of industrial furnace franchising enterprises.
2. Our company is strong in technology research and development center, has 12 years of industry experience.
3. we have a lot of senior enginner and technical researches, both of them with advanced and reliable innovative capacity.
4. Our machines have passed the test of CE. Besides, Lanshuo Electronics Co.,Ltd can provide specific application oriented equipment to meet individual needs of our customers and assist you with automation of the machines offered.
Packing & Delivery:
As for packing:
Machine is always wrapped with a film layer, and then packed with a paper box.The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
As for delivery:
Availabla to all kinds of transport mode;
Shipped in 5 days after payment
1. Reply inquiry in 24 hours
2. Experienced staffs answer all questions in fluent English
3. Customized design is available
4.Overseas on-site technicians service if required.
5. Special discount and protection of scales are provided to our distributor
6. Long-term technical service.
Q1. Why should I choose your company ?
A.Our company has 12 years of industry experience, quality can be guaranteed.
B.With professional and technical personnel, first-class service personnel, a strong work team,
C.reasonable price, products are exported America, Canada,Russia,Germany and other regions.
Q2 . What about you MOQ ?
We have reasonable price and according to your order quantity we will give appropriate discount.
Q3 . How long the delivery time ?
If we have products in stock, we will delivery as soon as possible. If not, we will arrang for you quickly and we guarantee delivery within 7-15 days.
If you have another question, pls feel free to contact us!
