High Frequency Induction Heater (HF-25KW, 40KW, 65KW, 80KW, 100KW)
1 More than 19 years experience,stable and goods performance
2 CE certificated
3 Copperated with ZHOUDAFU, Matsushita,Foxconn, Media, Gree a6nd ZHIGAO Air conditioner.

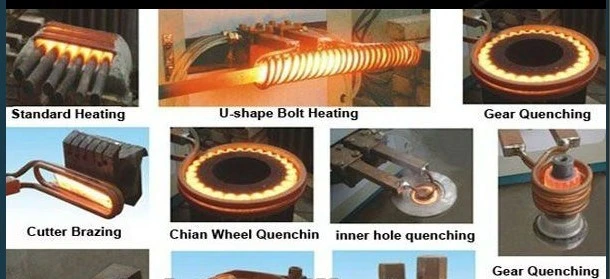

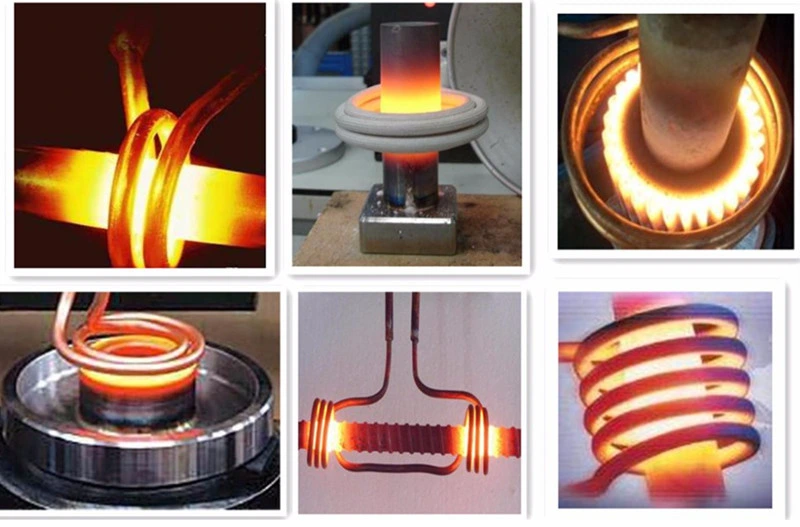

4 Suitable for a large range, heating, quenching, forging, melting, solding and so on.
5 One main part match two transformers, use the change switch to control let which one transformer to work, which one is prepare, save the time, improve the working effciency.
6 Each transformers have two transformer ratios, which good for connect different induction coils to work different workpiece.
1 Siemens IGBT module and Inverting technologies of third generation been used; Higher reliability and lower maintenance cost.
2 100% Duty cycle, continuous working is allowed at maximum power output.
3Display of heating power and heating current and oscillating frequency;
4 Simple to install, Installation can be done by unprofessional person very easily;
5 Light weight
6 Advantages of the model with timer: The power and the operating time of the heating period and the retain period can be preset respectively, to realize a simple heating curve, this model is suggested to use for batch production to improve the repeatability;
7 Constant current or constant power status can be selected accordingly to achieve higher heating efficiency;
|Output power||25KW,40KW, 65KW, 80KW, 90KW|
|Working power||3*380v/415v/440v/480v 50-60hz|
|The range of operating voltage||340-430AC|
|Timing (Heat ,Retain ,Cool )||1-99S|
|The flow rate of cooling water||0.15 Mpa 9LMin|
|Water temperature protection point||40 centidegree|
|Duty cycle||100%(40degree room temperature|
1. recommend the most suitable machine for customers, according to their requirements.
2. Inquiry and consulting support.
3. Sample testing support.

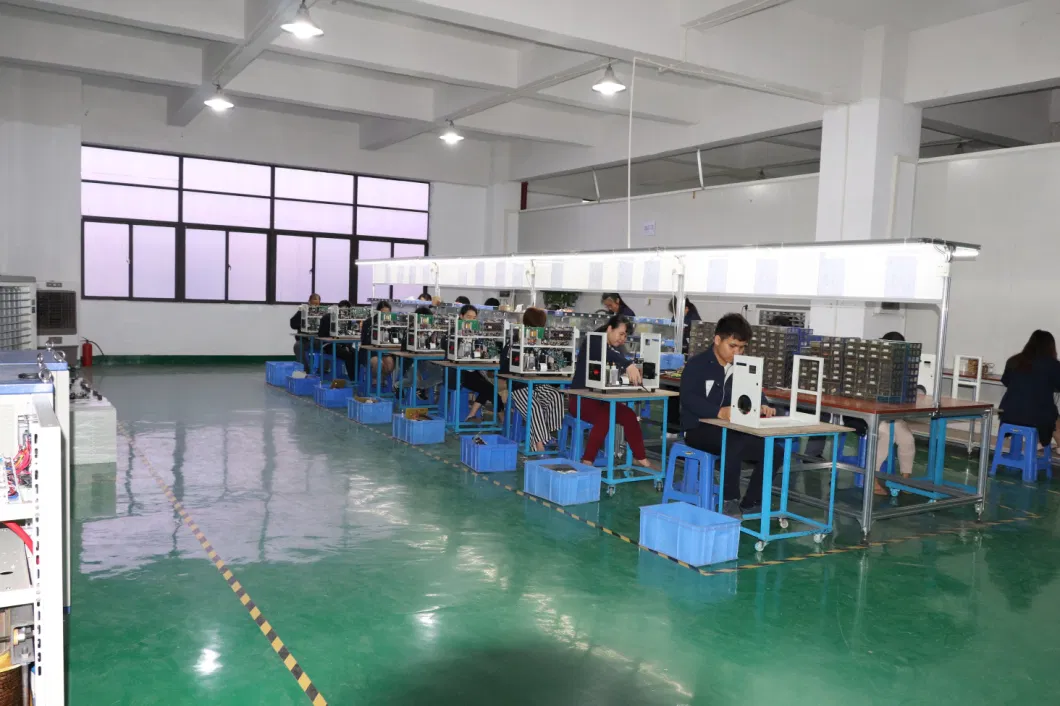

4. View our Factory.
1. Strictly manufacture the machine, according to relevant technical standards.
2. Take run test, according to relevant equipment test run regulations.
3. Strictly check up the machine, before delivery
4. Delivery on time.
1. Warranty time: Within 18 months from the date of delivering, 12months from date of receiving.
2. Within warranty all parts are free for customer, any fault caused by non-artificial reason, any quality problems such as design, manufacture, or procedure occurs, We shall provide replacement parts after detecting the faults.
3. If any big quality problems occurs out of the guarantee period, we will send maintenance
technician to provide visiting service after checking with the customer and charge for a favorable price.
5. We will provide a lifetime cost price to the buyer with the materials and spare parts used in system operation, equipment maintenance.
6. The above mentioned are only basic aftersale service requirements,we will make more promises related to quality assurance and operation guarantee.
